Step-by-Step Guide to Understanding PCA with a Simple Example

Principal component analysis (PCA) is a mathematical tool that reduces the dimensionality of datasets. It simplifies complex datasets by identifying the most significant patterns. By focusing on the key features, PCA helps you eliminate redundant information and noise, making your data cleaner and easier to interpret.

This technique is particularly valuable in data visualization. For instance, PCA can transform high-dimensional data into two or three dimensions, allowing you to visualize trends more effectively. Studies show that the first few principal components often explain over 80% of the variance, proving PCA's ability to retain essential trends while reducing complexity.

The PCA-weighted image fusion approach demonstrated contrast improvements of up to 195% and CNR gains as high as 12.3 dB, showcasing its power in enhancing data representation.

With its step-by-step process, PCA empowers you to uncover hidden patterns and make better data-driven decisions.

Key Takeaways

• PCA makes big datasets simpler by reducing their size. It keeps the important parts while saving over 95% of the data.

• PCA helps you see patterns in data by turning it into 2D or 3D. This makes trends easier to spot.

• PCA cleans data by removing extra or messy parts. It keeps only the useful information for studying.

• Picking the right number of components is important. Choose ones that explain at least 90% of the data to keep key details.

• PCA is useful in many areas like money and health. It finds patterns and helps make better choices with data.

Why PCA is Important

Simplifying complex datasets

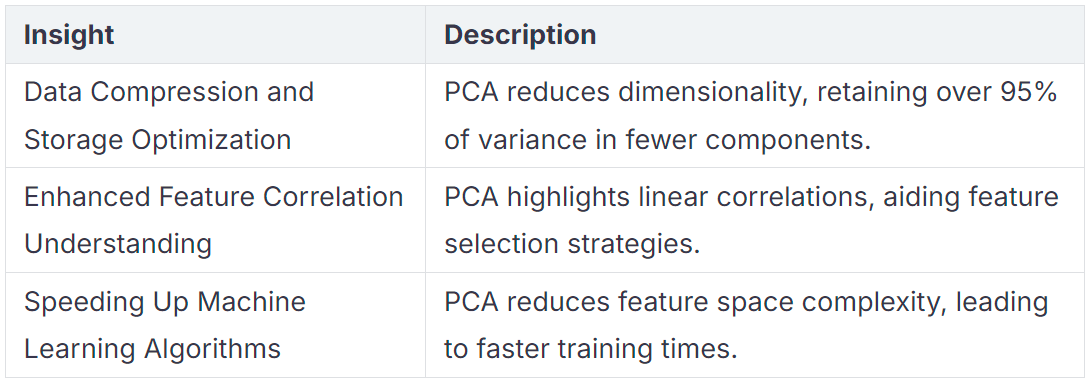

PCA helps you make sense of complex datasets by reducing their dimensionality. Instead of working with hundreds of variables, you can focus on a smaller number of principal components that capture most of the variance. For example, PCA can compress a dataset with 100 variables into just 10 principal components while retaining over 95% of the information. This makes your data easier to analyze and store.

PCA also enhances feature correlation understanding. By identifying linear relationships among variables, it helps you select the most relevant features for machine learning models. Additionally, PCA speeds up algorithms like neural networks by reducing the feature space complexity. This makes it ideal for applications requiring quick and accurate predictions.

Improving data visualization

Visualizing high-dimensional data can be challenging. PCA simplifies this process by transforming your data into two or three dimensions. This allows you to create clear plots that reveal trends, clusters, or anomalies. For instance, PCA can help you detect fraud in credit card transactions by highlighting patterns in a 2D scatter plot.

By focusing on the components that explain the most variance, PCA ensures that your visualizations retain the essential information. This makes it easier for you to interpret the data and make informed decisions. Whether you're analyzing customer behavior or monitoring system performance, PCA improves your ability to see the bigger picture.

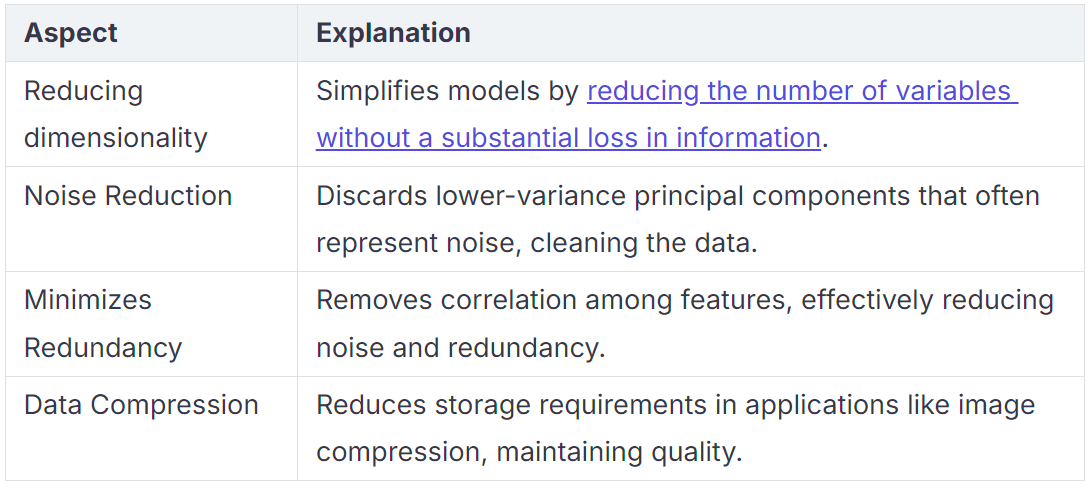

Removing redundancy and noise

PCA excels at cleaning your data by removing redundancy and noise. It discards components with low variance, which often represent irrelevant information. This process minimizes feature correlation and ensures that your dataset is free from unnecessary clutter.

For example, PCA simplifies models by reducing the number of variables without losing critical information. It also compresses data for applications like image processing, where maintaining quality is essential. By focusing on the principal components, PCA provides a cleaner and more efficient dataset for analysis.

Step-by-Step Process of Principal Component Analysis

Step 1: Centering the data

The first step in principal component analysis involves centering your data. This means adjusting each variable so that its mean becomes zero. Centering ensures that all variables are measured relative to their average values, which simplifies the calculations in later steps.

To center your data, subtract the mean of each variable from its corresponding values. For example, if you have a dataset of systolic and diastolic blood pressure readings, calculate the mean for each variable. Then, subtract these means from the individual readings. This process aligns the data around the origin, making it easier to identify patterns during dimensionality reduction.

Tip: Centering is crucial because PCA focuses on variance. Without centering, the results may become skewed, leading to inaccurate conclusions.

Step 2: Calculating the covariance matrix

Once your data is centered, the next step is to compute the covariance matrix. This matrix quantifies the relationships between variables by measuring how they vary together. The diagonal elements of the covariance matrix represent the variance of each variable, while the off-diagonal elements show the covariance between pairs of variables.

For example, in a dataset with systolic and diastolic blood pressure, the covariance matrix will reveal whether these variables increase or decrease together. A positive covariance indicates a direct relationship, while a negative covariance suggests an inverse relationship.

• Studies highlight the importance of accurate covariance matrix computation in PCA. Robust methods like ROBPCA and sparse PCA improve reliability, especially in high-dimensional data.

• In cases of high-dimensional, low-sample-size (HDLSS) data, traditional PCA may struggle. Advanced techniques ensure the covariance matrix remains accurate, even in challenging scenarios.

By calculating the covariance matrix, you gain insights into the structure of your data. This step lays the foundation for identifying the principal components in the next phase.

Step 3: Eigenvalue decomposition

Eigenvalue decomposition is the heart of PCA. This step involves breaking down the covariance matrix into eigenvalues and eigenvectors. Eigenvalues represent the amount of variance explained by each principal component, while eigenvectors indicate the directions of these components.

To perform eigenvalue decomposition, solve the equation:

Covariance Matrix × Eigenvector = Eigenvalue × Eigenvector

This equation helps you identify the eigenvectors that capture the most variance in your data. For instance, if the first eigenvalue is significantly larger than the others, the corresponding eigenvector becomes the first principal component.

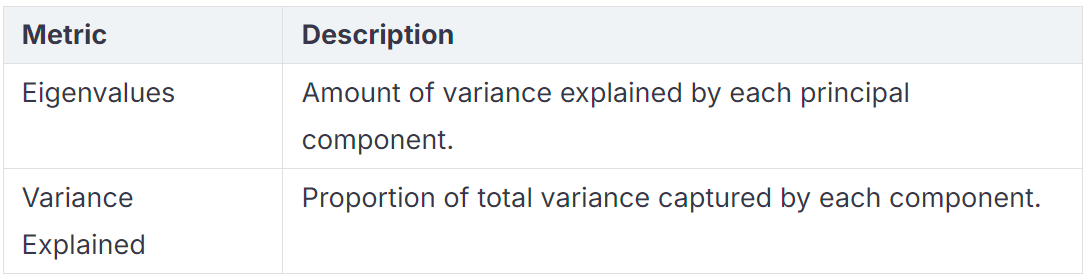

Quantitative metrics validate this step. Eigenvalues quantify the variance explained by each component, ensuring that the decomposition accurately reflects the data's structure. By focusing on the components with the highest eigenvalues, you can reduce dimensionality while retaining essential information.

Case Study: PCA has been applied in drug discovery to analyze high-throughput screening datasets. By identifying key structural characteristics, researchers synthesized new compounds with improved efficacy. Similarly, in clinical trials, PCA simplified patient profiles, enabling precise grouping and customized treatments.

Eigenvalue decomposition transforms your data into a new space where the principal components are uncorrelated. This step is essential for uncovering hidden patterns and achieving effective dimensionality reduction.

Step 4: Selecting principal components

After performing eigenvalue decomposition, the next step in principal component analysis is selecting the most important components. These components capture the majority of the variance in your data, making them essential for dimensionality reduction. Choosing the right number of components ensures that you retain critical information while simplifying your dataset.

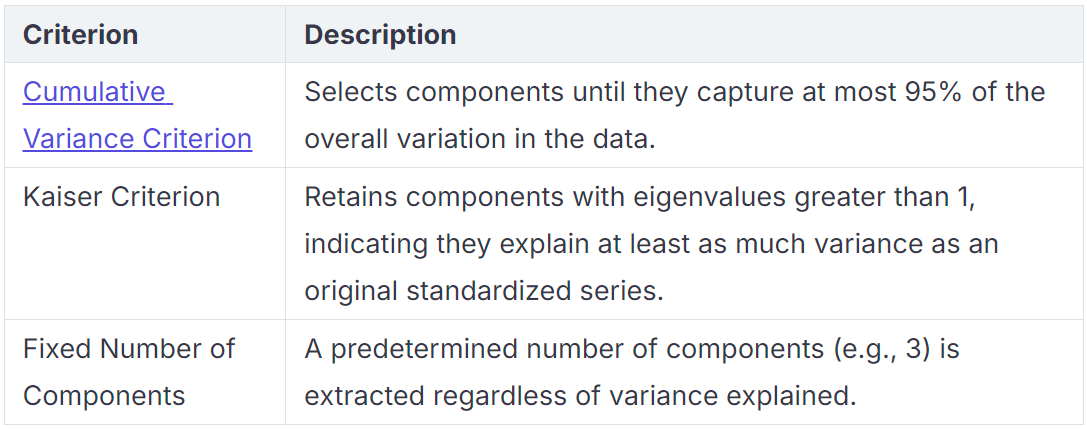

There are several criteria you can use to select components:

The cumulative variance criterion is one of the most common methods. It ensures that the selected components explain a significant portion of the total variance, often 90-95%. For example, if the first two components explain 92% of the variance, you can safely discard the remaining components without losing much information.

The Kaiser criterion is another popular approach. It retains components with eigenvalues greater than 1, as these components explain more variance than a single original variable. This method is particularly useful when working with standardized data.

In some cases, you might choose a fixed number of components based on practical considerations. For instance, if you need to visualize your data in two dimensions, you would select exactly two components, regardless of the variance explained.

Selecting the right components is crucial for achieving effective dimensionality reduction. By focusing on the components that matter most, you can simplify your data while preserving its essential characteristics.

Step 5: Projecting the data

Once you have selected the principal components, the final step is projecting your data onto these components. This process transforms your original dataset into a new coordinate system defined by the principal components. The result is a simplified dataset that retains the most important information.

To project the data, multiply the original centered data matrix by the matrix of eigenvectors corresponding to the selected components. This operation rotates the data into the new space, aligning it with the directions of maximum variance. The transformed dataset, often called the principal component scores, represents your data in terms of the selected components.

Here’s why projecting the data is so powerful:

• PCA captures essential information while reducing dimensionality, preserving key statistical characteristics, and mitigating noise and redundancy.

• The PCA-inversed series is significantly smoother than the original series, indicating effective noise filtering while retaining essential features.

• The distributions of mean values for the original and PCA-reduced series show a high degree of overlap, demonstrating PCA's ability to retain key statistical characteristics.

By projecting your data, you achieve a cleaner and more interpretable representation. For example, in image processing, PCA can reduce the number of pixels while maintaining the overall structure of the image. In finance, it can simplify stock market data by identifying the main trends driving price movements.

PCA also preserves critical statistical properties of your data. It retains characteristics like mean, sum, and peak values, ensuring that the transformed dataset remains representative of the original. Even higher-order moments, such as skewness and kurtosis, stay intact due to PCA's linear transformation.

Projecting the data is the final step in the step-by-step process of PCA. It allows you to fully leverage the power of dimensionality reduction, making your data easier to analyze and visualize.

Practical Example of PCA with Python

Introducing the dataset (e.g., blood pressure data)

To understand how principal component analysis works, let’s explore a simple example using a blood pressure dataset. This dataset includes systolic and diastolic blood pressure readings from six individuals. For instance, one participant has a systolic blood pressure of 126 mmHg and a diastolic blood pressure of 78 mmHg. Another participant has readings of 128 mmHg and 80 mmHg, respectively. These values show a strong positive correlation, making this dataset ideal for demonstrating PCA.

The dataset excludes participants on antihypertensive medication to avoid skewing the results. The mean systolic blood pressure is 121.3 mmHg, while the mean diastolic blood pressure is 70.7 mmHg. By applying PCA, you can combine these two variables into a single principal component, simplifying the dataset while retaining most of the information.

Applying PCA step-by-step with Python code

You can perform PCA in Python using libraries like NumPy and scikit-learn. Here’s a step-by-step guide to applying PCA to the blood pressure dataset:

1. Import the necessary libraries:
   Start by importing the required Python libraries for data manipulation and PCA.

import numpy as np
from sklearn.decomposition import PCA
from sklearn.preprocessing import StandardScaler

1. Prepare and normalize the dataset:
   Normalize the dataset to ensure all variables have equal weight. This step centers the data and scales it to have a mean of zero and a standard deviation of one.

# Example dataset: systolic and diastolic blood pressure readings
data = np.array([[126, 78], [128, 80], [130, 82], [122, 76], [124, 74], [120, 72]])

# Normalize the data
scaler = StandardScaler()
data_normalized = scaler.fit_transform(data)

1. Apply PCA:
   Use the PCA function to reduce the dataset’s dimensionality. Specify the number of principal components you want to retain.

# Apply PCA to reduce to 1 principal component
pca = PCA(n_components=1)
principal_components = pca.fit_transform(data_normalized)

1. Check the explained variance:
   Verify how much variance each principal component explains. This helps you decide the optimal number of components to retain.

# Explained variance ratio
print("Explained variance ratio:", pca.explained_variance_ratio_)

This step-by-step approach ensures that you retain the most critical information while reducing the dataset’s complexity. Tutorials from the Python community emphasize this method, highlighting its effectiveness in dimensionality reduction and variance retention.

Visualizing the transformed data

Visualization helps you understand the impact of PCA on your dataset. After applying PCA, you can create plots to analyze the transformed data.

1. Cumulative explained variance plot:
   This plot shows how much variance each principal component explains. It helps you determine the optimal number of components to retain. For example, if the curve flattens after one component, you can conclude that one principal component captures most of the variance.

import matplotlib.pyplot as plt

# Cumulative explained variance
plt.plot(np.cumsum(pca.explained_variance_ratio_))
plt.xlabel('Number of Components')
plt.ylabel('Cumulative Explained Variance')
plt.title('Cumulative Explained Variance Plot')
plt.show()

1. Scatter plot of PCA components:
   A scatter plot of the principal components against the original data reveals how well the transformation captures the dataset’s structure.

# Scatter plot of the first principal component
plt.scatter(data_normalized[:, 0], principal_components[:, 0])
plt.xlabel('Original Data (Systolic)')
plt.ylabel('Principal Component 1')
plt.title('Scatter Plot of PCA Component')
plt.show()

These visualizations validate the effectiveness of PCA. The cumulative explained variance plot shows that the first principal component captures nearly all the variance. The scatter plot demonstrates how the transformed data aligns with the original dataset, confirming that PCA retains the essential structure.

By following this process, you can simplify your dataset, improve visualization, and uncover hidden patterns. Whether you’re analyzing blood pressure readings or high-dimensional datasets, PCA provides a powerful tool for dimensionality reduction.

Interpreting PCA Results

Understanding the explained variance ratio

The explained variance ratio is a key metric in PCA. It shows how much of the total variance in your data each principal component captures. This helps you understand the importance of each component in representing the original data. For example, if the first component explains 80% of the variance, it means this single component retains most of the information from the dataset.

You can calculate the explained variance ratio by dividing the eigenvalue of a principal component by the total sum of eigenvalues. This ratio provides a clear picture of how much each component contributes to the overall variance. The table below summarizes the statistical metrics used to interpret the explained variance:

By analyzing the explained variance ratio, you can prioritize the components that capture the most significant patterns in your data.

Choosing the number of components

Selecting the right number of components is crucial for effective dimensionality reduction. Retaining too many components may keep unnecessary noise, while too few could result in losing valuable information. Several guidelines can help you decide:

• Explained Variance Ratio: Retain components that explain a significant portion of the variance.

• Cumulative Variance Threshold: Keep components until they account for at least 90% of the cumulative variance.

• Scree Plot Analysis: Use a scree plot to identify the "elbow point," where the explained variance levels off.

For example, if the first three components explain 92% of the variance, you can safely discard the remaining components. This ensures your data remains simplified without losing critical insights.

Insights from the transformed data

PCA-transformed data provides valuable insights by simplifying complex datasets. It reduces dimensionality while retaining essential information, making your data easier to analyze. For instance, PCA filters out noise, leading to cleaner datasets and more robust models. This is particularly useful in applications like energy forecasting, where noise can distort predictions.

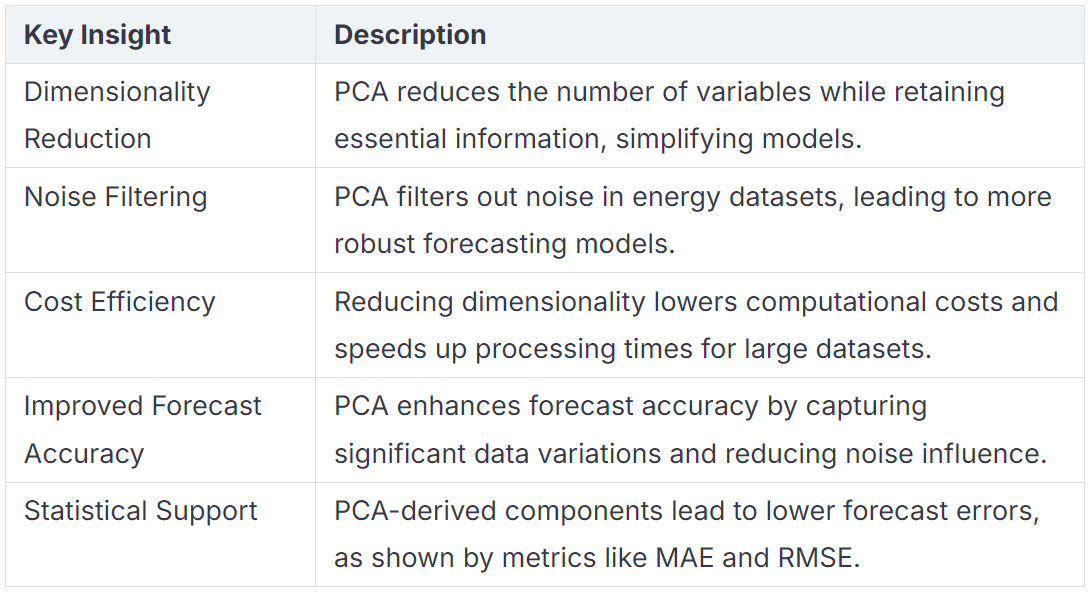

The table below highlights key benefits of PCA-transformed data:

By leveraging these insights, you can make better decisions and improve the performance of your models. PCA not only simplifies your data but also enhances its quality, making it a powerful tool for data analysis.

When to Use PCA

Scenarios where PCA is beneficial

PCA proves highly effective in various scenarios where simplifying data is essential. It helps you reduce the dimensionality of datasets while retaining most of the variance. This makes it ideal for applications requiring efficient data analysis and visualization. For instance, PCA is widely used in finance, healthcare, and machine learning to uncover patterns and improve decision-making.

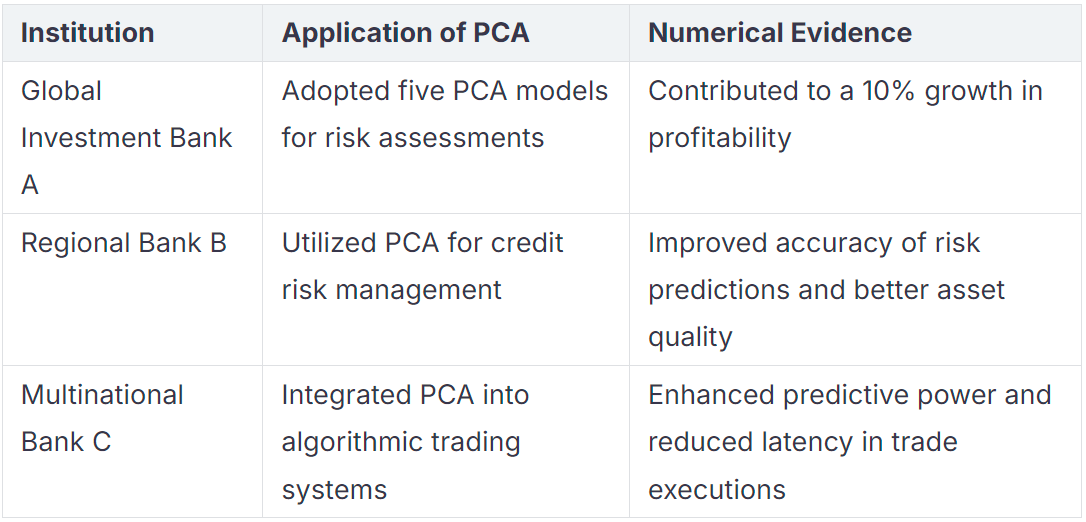

A few real-world examples highlight its benefits:

• Risk Assessment: Financial institutions use PCA to evaluate risks. For example, a global investment bank implemented five PCA models, leading to a 10% increase in profitability.

• Credit Risk Management: Regional banks apply PCA to improve the accuracy of risk predictions. This enhances asset quality and ensures better financial stability.

• Algorithmic Trading: Multinational banks integrate PCA into trading systems to boost predictive power and reduce latency, enabling faster and more accurate trade executions.

PCA also benefits fields like image processing, where it compresses images without significant quality loss. In genetics, it identifies key genetic markers by analyzing high-dimensional data. These examples demonstrate how PCA simplifies complex datasets and enhances analytical efficiency.

Limitations and when not to use PCA

While PCA is a powerful tool, it has limitations that you should consider before applying it. One major drawback arises in high-dimensional datasets where the number of variables exceeds the number of observations. In such cases, traditional PCA methods may produce unreliable results. Alternative techniques, such as robust covariance estimation, are necessary to ensure stability.

Another challenge lies in selecting the number of components to retain. Keeping too many components can lead to overfitting, where the model captures noise instead of meaningful patterns. On the other hand, retaining too few components may result in losing critical information. This balance is particularly important in sensitive fields like healthcare and finance, where decisions based on PCA can have significant consequences.

PCA also assumes linear relationships between variables. If your data contains non-linear patterns, PCA might fail to capture them effectively. Additionally, it is sensitive to scaling. Variables with larger ranges can dominate the analysis, so standardizing your data is crucial before applying PCA.

Understanding these limitations helps you decide when PCA is appropriate. By carefully evaluating your dataset and objectives, you can determine whether PCA aligns with your analytical needs.

You now have a clear understanding of the step-by-step process of PCA and its benefits. This powerful tool simplifies data, reduces dimensionality, and uncovers hidden patterns. By practicing PCA on your own datasets, you can gain hands-on experience and improve your analytical skills.

Take your learning further by exploring advanced PCA applications, such as image compression or genetics research. You can also investigate alternative dimensionality reduction techniques like t-SNE or UMAP to broaden your knowledge. These methods will help you tackle complex datasets with confidence.

FAQ

What is the main purpose of PCA?

PCA reduces the number of variables in your dataset while retaining most of the important information. It simplifies complex data, making it easier to analyze and visualize. This technique helps you identify patterns and trends that might not be obvious in high-dimensional data.

Do you need to standardize data before applying PCA?

Yes, you should standardize your data if the variables have different scales. Standardization ensures that all variables contribute equally to the analysis. Without it, variables with larger ranges might dominate the results, leading to biased principal components.

How do you decide the number of principal components to keep?

You can use the explained variance ratio or a scree plot. Retain components that capture at least 90% of the total variance. Alternatively, use the Kaiser criterion, which keeps components with eigenvalues greater than 1.

Can PCA handle non-linear relationships?

No, PCA assumes linear relationships between variables. If your data contains non-linear patterns, consider using other techniques like kernel PCA, t-SNE, or UMAP. These methods are better suited for capturing non-linear structures in data.

Is PCA suitable for all datasets?

PCA works best for datasets with strong correlations between variables. Avoid using it for datasets with non-linear relationships or when interpretability of the transformed components is critical. Always evaluate your dataset's characteristics before applying PCA.
