Support Vector Machines Explained Simply

Support Vector Machines are a powerful tool in machine learning that help you classify and predict data. They create a boundary, called a hyperplane, to separate data into distinct groups. You can use SVMs to solve classification problems, like identifying spam emails or recognizing faces in images. They also work for regression tasks, such as predicting house prices or stock trends. By handling both linear and nonlinear data, SVMs excel in scenarios where precise boundaries between classes are critical. Their success in applications like sentiment analysis and medical diagnosis proves their ability to tackle complex challenges effectively.

Key Takeaways

• Support Vector Machines (SVMs) sort data by drawing a line, called a hyperplane, that separates groups clearly.

• SVMs work well with both simple and complex data. They use a method called the kernel trick to make hard-to-separate data easier to divide.

• Support vectors are key points that help create the hyperplane. These points help SVMs work well with new data and avoid mistakes.

• SVMs are great for small datasets with clear differences. They are used in tasks like finding objects in pictures, sorting text, and diagnosing diseases.

• SVMs are accurate and strong but need a lot of computing power. Choosing the right settings and methods is very important.

What Are Support Vector Machines?

A Simple Definition

A Support Vector Machine (SVM) is a supervised machine learning algorithm designed to classify data into distinct categories or predict continuous values. Think of it as a tool that draws a boundary, called a decision boundary, to separate data points into groups. This boundary could be a straight line, a curve, or even a more complex shape, depending on the data. For example, if you want to classify emails as spam or not spam, an SVM classifier can help by finding the best boundary that separates these two groups based on the features of the emails.

The key idea behind SVMs is to maximize the margin, which is the distance between the decision boundary and the closest data points from each group. These closest points are called support vectors, and they play a crucial role in defining the boundary. By focusing only on these critical points, SVMs ensure that the model generalizes well to new, unseen data.

Tip: SVMs are particularly effective when you have a small dataset with clear distinctions between classes.

The Role of Hyperplanes and Support Vectors

In SVMs, the decision boundary is referred to as a hyperplane. A hyperplane is like a dividing line, but it can exist in higher dimensions. For instance, in a two-dimensional space, the hyperplane is a straight line. In three dimensions, it becomes a flat plane. In even higher dimensions, it’s called a hyperplane, though it’s harder to visualize.

Support vectors are the data points closest to the hyperplane. These points are critical because they determine the position and orientation of the hyperplane. The margin, or the space between the hyperplane and the support vectors, is what SVMs aim to maximize. A larger margin often leads to better generalization, meaning the model performs well on new data.

• Key Concepts:

  • The margin is the distance between the hyperplane and the support vectors.

  • The optimal hyperplane maximizes this margin.

  • Support vectors are the most influential points in defining the decision boundary.

For example, imagine you’re classifying patients into two groups: those with a disease and those without. The hyperplane would act as the boundary separating these groups based on their medical test results. The support vectors would be the patients whose test results are closest to this boundary.

Note: The geometric interpretation of SVMs highlights the importance of hyperplanes and support vectors in creating optimal decision boundaries.

Linear and Nonlinear Data Handling

Support Vector Machines excel at handling both linear and nonlinear data. If your data is linearly separable, SVMs can draw a straight hyperplane to divide the groups. For example, if you’re classifying apples and oranges based on weight and color, a straight line might suffice to separate the two.

However, not all data can be separated by a straight line. For instance, imagine data points arranged in concentric circles. A linear SVM would struggle to classify these points correctly. This is where the kernel trick comes into play. The kernel trick transforms the data into a higher-dimensional space where it becomes linearly separable. In this new space, the SVM can draw a hyperplane that effectively separates the groups.

• Examples:

  • Linear Data: Classifying emails as spam or not spam using features like word frequency.

  • Nonlinear Data: Identifying handwritten digits, where the data points form complex patterns.

The flexibility of SVMs to handle both types of data makes them a versatile tool in machine learning. Whether your data is simple or complex, SVMs can adapt to find the best decision boundary.

Types of Support Vector Machines

Linear SVMs

Linear SVMs are the simplest type of support vector machine. They work best when your data is linearly separable, meaning you can draw a straight line (or a flat plane in higher dimensions) to divide the data into distinct groups. For example, if you’re classifying fruits based on size and weight, a linear SVM might create a straight boundary to separate apples from oranges. Linear SVMs are fast and efficient, making them ideal for straightforward classification tasks.

However, their simplicity can be a limitation. When data points overlap or form complex patterns, linear SVMs may struggle to find an accurate boundary. In such cases, you need a more advanced approach, like nonlinear SVMs.

Nonlinear SVMs

Nonlinear SVMs handle data that cannot be separated by a straight line. They use a mathematical technique called the kernel trick to transform the data into a higher-dimensional space. In this new space, the data becomes linearly separable, allowing the SVM to draw an effective boundary.

For instance, imagine classifying data points arranged in concentric circles. A linear SVM would fail, but a nonlinear SVM could use a radial basis function (RBF) kernel to create a circular decision boundary. This flexibility makes nonlinear SVMs suitable for complex tasks like image recognition or handwriting analysis.

Studies comparing SVM with Random Forest (RF) and Artificial Neural Networks (ANN) show that SVM often achieves high accuracy in specific contexts, such as land use classification. However, RF sometimes outperforms SVM, highlighting the importance of choosing the right algorithm for your data.

Support Vector Regression (SVR)

Support Vector Regression (SVR) extends the concept of SVM to predict continuous values instead of classifying data. It works by finding a hyperplane that fits the data within a specified margin of error. For example, you can use SVR to predict house prices based on features like location, size, and number of bedrooms.

SVR is particularly useful when you need precise predictions and can tolerate small errors. Its ability to handle both linear and nonlinear relationships makes it a versatile tool for regression tasks.

Advantages and Disadvantages of SVMs

Key Advantages

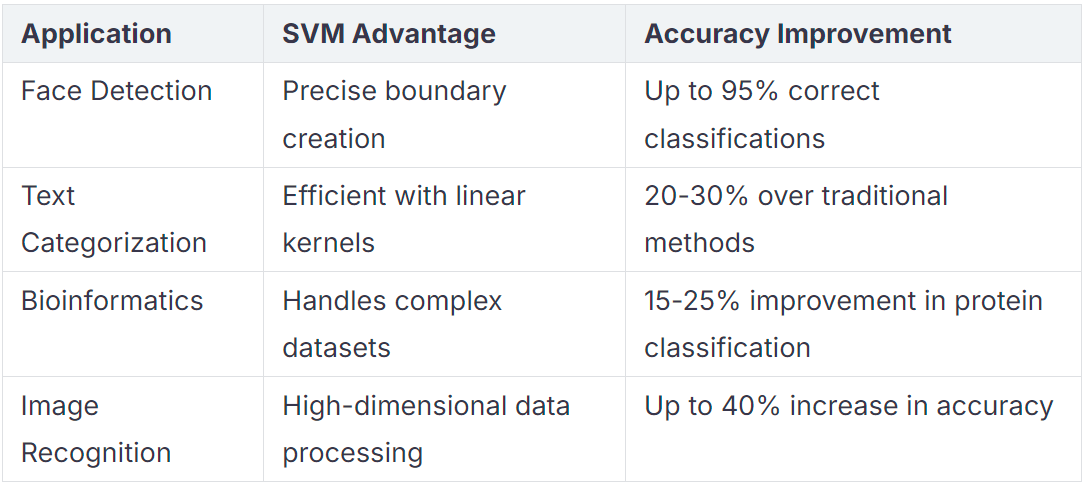

Support vector machines offer several benefits that make them a popular choice in machine learning tasks.

1. Effective in High-Dimensional Spaces
   SVMs perform exceptionally well when dealing with high-dimensional data. For example, in bioinformatics, they are used for protein classification and cancer detection, where datasets often have hundreds or thousands of features. Their ability to handle such complexity ensures accurate predictions even in challenging scenarios.

2. Versatility in Applications
   SVMs excel across a wide range of applications. In text categorization, they efficiently classify documents and filter spam emails. For image recognition, they process pixel data to identify faces with high precision. In handwriting recognition, they enable accurate digital transcription of handwritten text.

3. Robustness to Overfitting
   By focusing on the support vectors, SVMs reduce the risk of overfitting, especially in cases where the number of features exceeds the number of samples. This makes them a reliable choice for small datasets with clear class distinctions.

4. Precise Boundary Creation
   SVMs are designed to create optimal decision boundaries. For instance, in face detection tasks, they achieve up to 95% correct classifications by forming precise boundaries between classes. This precision is particularly valuable in applications requiring high accuracy.

Tip: If your dataset has clear margins and high-dimensional features, an SVM classifier is likely to deliver excellent results.

Limitations and Challenges

While support vector machines are powerful, they come with certain limitations that you should consider before using them.

1. Computational Complexity
   SVMs can be computationally expensive, especially with large datasets. Training an SVM involves solving a quadratic optimization problem, which becomes slower as the dataset size increases. For example, in applications like image recognition with millions of data points, SVMs may struggle to keep up with faster algorithms like Random Forests.

2. Sensitivity to Parameter Tuning
   The performance of an SVM heavily depends on selecting the right kernel and tuning parameters like the regularization constant (C) and kernel coefficient (γ). Poor parameter choices can lead to underfitting or overfitting, reducing the model's effectiveness.

3. Limited Scalability
   SVMs are less scalable compared to algorithms like Neural Networks or Random Forests. They work best with smaller datasets. For large-scale problems, their training time and memory requirements can become prohibitive.

4. Difficulty with Noisy Data
   SVMs are sensitive to outliers. A single misclassified data point can significantly affect the position of the hyperplane, leading to suboptimal results. For example, in medical diagnosis, noisy or mislabeled data can reduce the accuracy of predictions.

Note: If your dataset is large or noisy, consider alternative algorithms like Random Forests or Neural Networks for better scalability and robustness.

Key Concepts in Support Vector Machines

Hyperplanes and Margins

Hyperplanes are the decision boundaries that separate data into distinct groups in a support vector machine. In two dimensions, this boundary is a straight line. In higher dimensions, it becomes a flat plane or a hyperplane. The goal of SVMs is to find the hyperplane that maximizes the margin, which is the distance between the hyperplane and the closest data points from each class.

The margin plays a critical role in improving classification accuracy. A wider margin reduces the risk of misclassifying new data points. The equation of the hyperplane, (w^Tx + b = 0), helps define this boundary mathematically. The margin width is calculated as (\frac{2}{{\left| w \right|}}), ensuring the solution is globally optimal through convex optimization. This balance between margin maximization and error minimization enhances the model's generalization capabilities, especially when training data is limited.

Tip: A larger margin often leads to better predictions, making SVMs ideal for tasks like medical diagnosis and financial forecasting.

Support Vectors

Support vectors are the data points closest to the hyperplane. These points determine the position and orientation of the hyperplane, making them essential for classification. Unlike other algorithms that consider all data points, SVMs focus only on these critical points.

Research shows that using support vectors improves accuracy significantly. For example, studies comparing SVM models demonstrate lower wrong prediction rates (8.6%) compared to other methods like HIAT2 (23.4%). This precision makes SVMs effective in applications like bioinformatics and image recognition.

Support vectors also influence the margin width. Points within the margin or on the wrong side of the hyperplane contribute to misclassification errors. By tuning parameters like (C), you can control how much weight is given to these errors, balancing accuracy and margin size.

The Kernel Trick

The kernel trick is a powerful feature of support vector machines that allows them to handle nonlinear data. When data cannot be separated by a straight line, the kernel trick transforms it into a higher-dimensional space. In this new space, the data becomes linearly separable, enabling SVMs to create effective decision boundaries.

For example, imagine data points arranged in concentric circles. A linear SVM would fail to classify them accurately. By applying a kernel method, such as the radial basis function (RBF), the SVM can create a circular boundary that separates the groups. This transformation happens without explicitly computing the coordinates in the higher-dimensional space, saving computational resources.

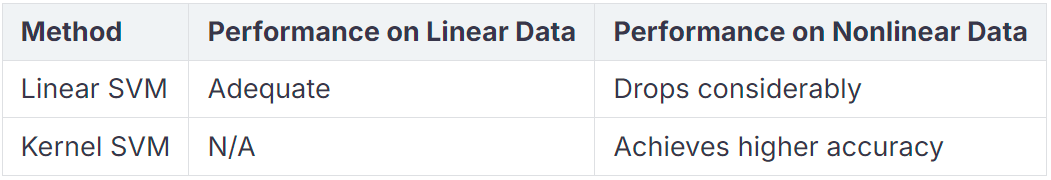

Kernel methods reduce errors caused by nonlinear patterns and improve classification accuracy. They are widely used in tasks like handwriting recognition and speech analysis, where data complexity is high.

Note: Choosing the right kernel is crucial. Popular options include polynomial, RBF, and sigmoid kernels, each suited for specific types of data.

Comparing SVMs to Other Machine Learning Methods

SVMs vs. Logistic Regression

When comparing SVMs and logistic regression, you’ll notice that both excel at binary classification tasks. However, they differ in how they approach the problem. Logistic regression predicts probabilities and uses a sigmoid function to classify data. In contrast, SVMs focus on finding the optimal hyperplane that separates classes with the widest margin.

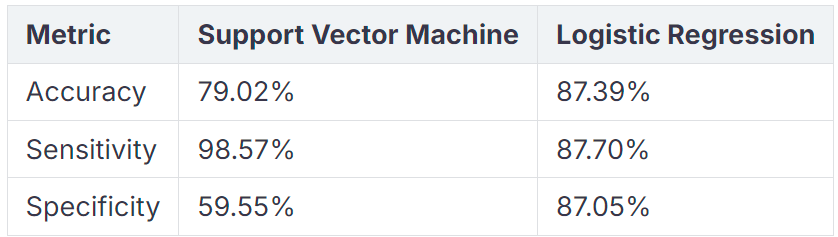

In terms of performance, logistic regression often achieves higher accuracy in balanced datasets. For example, logistic regression has an accuracy of 87.39%, while SVM achieves 79.02%. However, SVMs shine in sensitivity, reaching 98.57%, compared to logistic regression’s 87.70%. This makes SVMs a better choice when identifying critical cases, such as detecting diseases.

Tip: Use SVMs when sensitivity is crucial, such as in medical diagnostics, and logistic regression when you need a simpler, faster model.

SVMs vs. Decision Trees

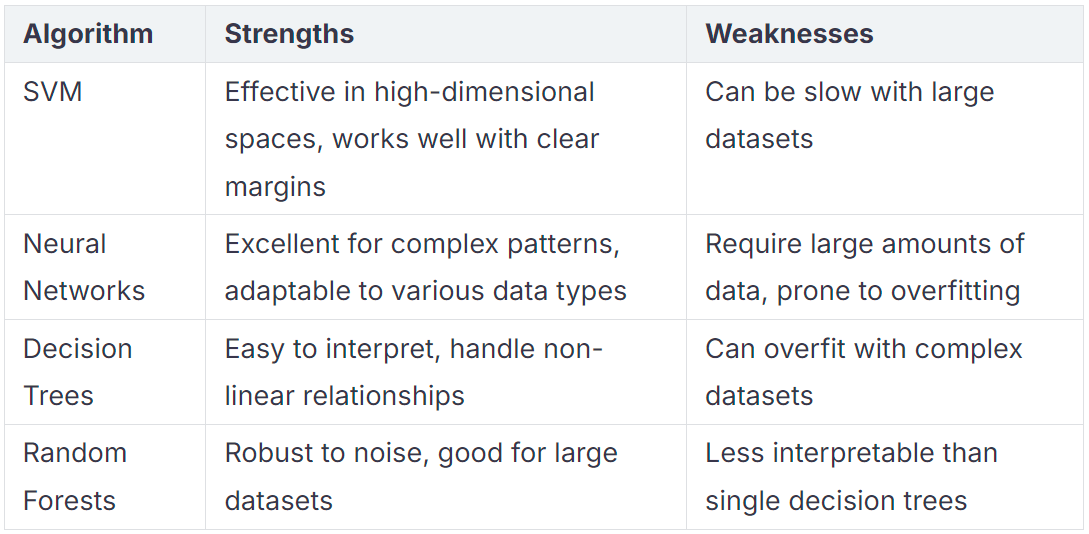

SVMs and decision trees differ significantly in their approach to classification. SVMs rely on mathematical optimization to find the best hyperplane, while decision trees split data into branches based on feature thresholds.

SVMs often outperform decision trees in terms of sensitivity, achieving 98.57%, compared to decision trees’ lower specificity. However, decision trees are easier to interpret and handle noisy data better. For example:

1. SVM achieves up to 98.91% accuracy in DDoS detection.

2. Random Forest, a tree-based method, performs better in high-dimensional data, reducing overfitting risks.

3. Gradient Boosted Trees achieve the highest accuracy at 88.66%.

Note: Choose SVMs for high sensitivity tasks and decision trees for interpretability and scalability.

SVMs vs. Neural Networks

SVMs and neural networks both handle complex tasks, but they differ in computational requirements and scalability. SVMs work well with small datasets and high-dimensional sparse data. Neural networks, on the other hand, excel in large-scale problems and complex patterns.

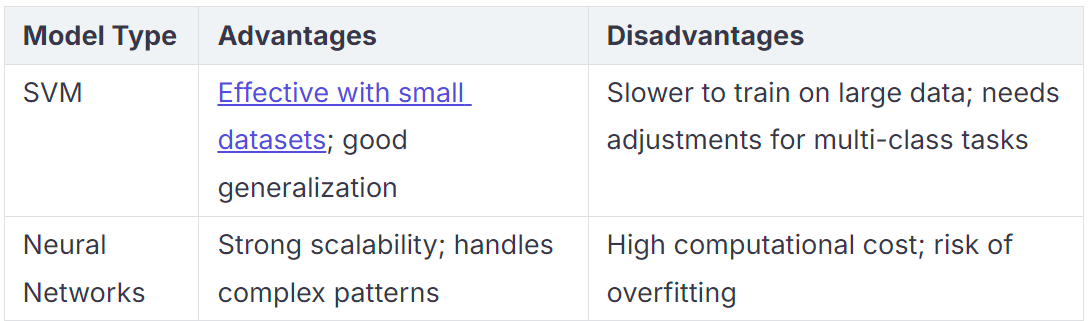

For example, SVMs generalize well and require fewer computational resources. However, they struggle with multi-class problems without special adjustments. Neural networks, while powerful, demand significant computational power and are prone to overfitting.

Tip: Use SVMs for smaller datasets with clear margins and neural networks for large-scale, complex tasks like image recognition.

Real-World Applications of SVMs

Image Classification

Support Vector Machines excel in image classification tasks by creating precise boundaries between classes. You can use an SVM classifier to identify faces, classify medical images, or analyze satellite data. These applications rely on the algorithm's ability to handle high-dimensional data effectively.

• Examples of SVM success in image classification:

  • Face Recognition: SVMs achieved over 95% accuracy in classifying facial images from diverse datasets (Benassi et al., 2020).

  • Medical Image Analysis: SVMs classified tumors from MRI scans with an AUC of 0.91, aiding in disease diagnosis (Litjens et al., 2017).

  • Remote Sensing: SVMs effectively classified land cover types using satellite imagery, addressing class imbalance for improved accuracy (Wu et al., 2013).

These results demonstrate the versatility of SVMs in handling complex image data across various domains.

Text Categorization

SVMs are widely used in text categorization tasks, such as spam filtering, sentiment analysis, and document classification. They analyze textual features to create decision boundaries that separate categories effectively.

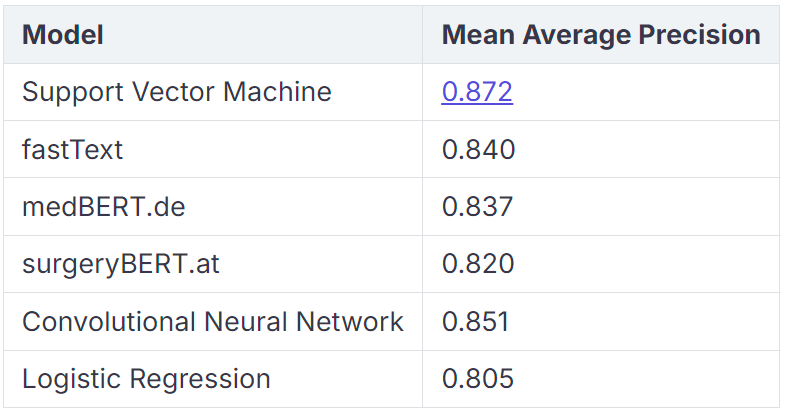

SVMs outperform many models in mean average precision, making them a reliable choice for text-based tasks. Their ability to handle high-dimensional sparse data ensures accurate categorization even in challenging scenarios.

Medical Diagnosis

In healthcare, SVMs play a crucial role in diagnosing diseases by analyzing patient data. They classify medical conditions based on features like test results and imaging data.

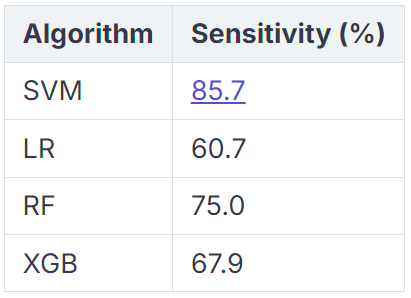

SVMs achieve higher sensitivity compared to other algorithms, making them ideal for critical tasks like cancer detection and disease classification. Their precision ensures fewer false negatives, which is vital in medical applications.

Support vector machines offer a powerful way to classify and predict data. They excel in handling both simple and complex datasets, making them a versatile tool in machine learning. You can use them for tasks like image recognition, text categorization, and medical diagnosis. Their ability to create precise boundaries ensures accurate results, even with small datasets. By exploring their applications, you can unlock new possibilities in solving real-world problems. Start experimenting with SVMs today to see how they can enhance your projects.

FAQ

What is the main purpose of Support Vector Machines?

SVMs help you classify data into groups or predict continuous values. They create a boundary, called a hyperplane, to separate data points. For example, you can use SVMs to identify spam emails, recognize faces, or predict house prices.

How do SVMs handle nonlinear data?

SVMs use the kernel trick to transform nonlinear data into a higher-dimensional space. In this space, the data becomes linearly separable. This allows SVMs to create effective boundaries for complex patterns, like concentric circles or spirals.

What are support vectors, and why are they important?

Support vectors are the data points closest to the hyperplane. They determine the position and orientation of the boundary. By focusing on these critical points, SVMs ensure accurate classification and better generalization to new data.

When should you use SVMs over other algorithms?

Use SVMs when your dataset is small, has clear class distinctions, or includes high-dimensional features. They work well for tasks like text categorization, image recognition, and medical diagnosis. For large datasets, consider alternatives like Random Forests or Neural Networks.

What are the key limitations of SVMs?

SVMs can be computationally expensive and sensitive to parameter tuning. They struggle with noisy data and large datasets. Choosing the right kernel and parameters is crucial for achieving good results.

Tip: Experiment with different kernels and use cross-validation to optimize SVM performance.
