Understanding the Role of Data Types in DAX Math

Data types play a crucial role in DAX calculations. They determine how numbers, text, and other values behave during arithmetic operations. You must choose the right data type to ensure precise results and optimal performance. Mismanaging data types can lead to unexpected errors or slow queries, especially when working with large datasets. For example, mixing integers with floating-point numbers may cause rounding issues, which can distort your results. Paying attention to these details helps you avoid inefficiencies and maintain accurate outcomes in your formulas.

Key Takeaways

• Pick the right data type to keep calculations correct and fast. Use whole numbers for counting and decimals for exact measurements.

• Know about automatic and manual data type changes in DAX. Use manual changes to stay in control and avoid surprises.

• Check your data model often to keep data types consistent. This helps prevent mistakes and makes queries faster.

• Test your DAX formulas carefully to find and fix problems. Use tools to debug and solve unexpected issues.

• Avoid rounding mistakes by using the same data types. Add up values first before doing calculations for better accuracy.

Overview of Data Types in DAX

Common Numeric and Non-Numeric Data Types

DAX supports a variety of data types that you can use in your calculations. Numeric data types include integers, decimals, and currencies. These are ideal for performing arithmetic operations like addition, multiplication, or division. Non-numeric data types include text, Boolean values (true/false), and dates. Text data types help you work with strings, while Boolean values are useful for logical comparisons. Dates allow you to perform time-based calculations, such as finding the difference between two dates.

Tip: Always match the data type to the kind of calculation you want to perform. For example, use integers for counting items and decimals for precise measurements.

How DAX Handles Data Types Internally

DAX processes data types in a way that ensures efficient storage and calculation. When you import data into Power BI, DAX converts it into optimized formats for faster querying. Numeric values, for instance, are stored in formats that minimize memory usage. However, DAX treats mixed data types carefully during calculations. If you combine integers with decimals, DAX automatically adjusts the data type to avoid errors. This internal handling ensures that your formulas produce consistent results.

Implicit vs. Explicit Data Type Conversions

DAX performs two types of data type conversions: implicit and explicit. Implicit conversions happen automatically when you mix data types in a formula. For example, if you multiply an integer by a decimal, DAX converts the integer to a decimal without requiring any input from you. Explicit conversions, on the other hand, require you to specify the desired data type using functions like CONVERT or FORMAT. Explicit conversions give you more control and help you avoid unexpected results.

Note: Use explicit conversions when precision is critical, such as in financial calculations. This ensures that rounding errors or mismatches don’t affect your results.

Challenges of Data Type Mismatches

Errors Caused by Implicit Conversions

Implicit conversions in DAX occur when the engine automatically adjusts mismatched data types in a formula. While this feature simplifies calculations, it can also lead to unexpected errors. For instance, DAX may convert an integer to a decimal during multiplication, but if the value has an incompatible data type, the formula will fail. This often happens in complex expressions where implicit conversions create hidden pitfalls.

Consider the difference between using the INT function and the CONVERT function in DAX. The INT function truncates decimal values to integers, while CONVERT explicitly changes the data type. Relying on implicit conversions instead of these functions can cause inaccuracies, especially when working with large datasets. You should always verify the data types of your columns to avoid such issues.

Performance Issues Linked to Incorrect Data Types

Choosing the wrong data type can significantly impact performance. DAX handles data types less strictly than M code, which can lead to inefficiencies. For example, mixing floating-point numbers with integers forces the engine to perform additional conversions during calculations. These conversions slow down queries, especially when processing millions of rows.

Handling missing values or empty strings also creates performance bottlenecks. DAX treats these inconsistently, sometimes requiring extra steps to clean or transform the data. By selecting the correct data types upfront, you can reduce the need for conversions and improve query speed.

Tip: Use integers for counting and decimals for precise measurements. This minimizes unnecessary conversions and keeps your formulas efficient.

Examples of Data Type Mismatch Scenarios

Data type mismatches often arise in real-world scenarios. For instance:

• Combining numeric columns with text fields can result in errors or unexpected outputs.

• Handling non-printing characters or empty strings in text fields may cause discrepancies in calculations.

• Differences in case sensitivity between DAX and M code can confuse users and produce inconsistent results.

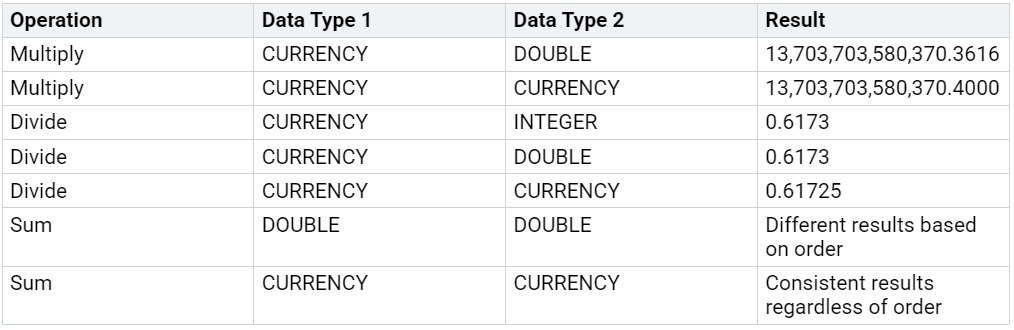

Imagine a formula that multiplies a floating-point exchange rate by a currency value. If the exchange rate uses a decimal data type, DAX must invoke the formula engine for the calculation. This slows down performance and introduces rounding errors. To avoid this, you should align the data types of all columns involved in the formula.

By understanding these challenges, you can write more reliable and efficient DAX formulas.

How to Choose the Right Data Types for DAX Calculations

Matching Data Types to Calculation Requirements

Choosing the right data types for your DAX calculations ensures accuracy and efficiency. Each calculation has specific requirements, and aligning data types with these needs is essential. For example, use integers for counting items or performing whole-number operations. Decimals are better suited for precise measurements, such as financial data or scientific calculations.

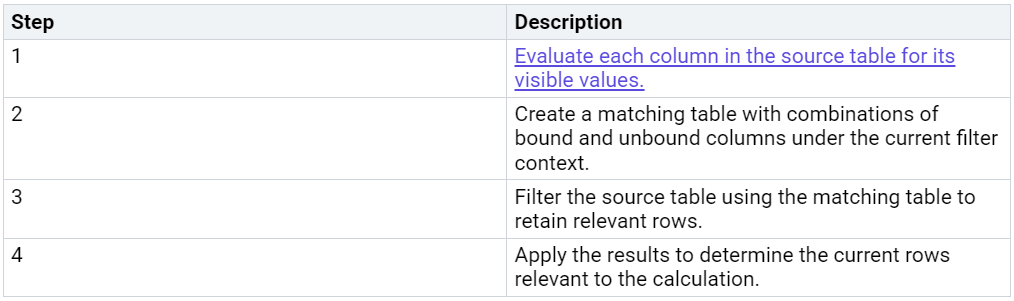

To match data types effectively, you need to evaluate the visible values in each column of your data model. This process involves several steps:

Understanding the difference between row context and filter context is also critical. Row context defines the current row during iteration, while filter context determines which rows are visible based on slicers or filters. By aligning your data types with these contexts, you can ensure that your calculations produce accurate results.

Tip: Always review your data model to confirm that column data types align with the intended calculation. This reduces errors and improves performance.

Using Explicit Casting to Avoid Errors

Explicit casting gives you control over how data types are handled in your formulas. When you rely on implicit conversions, DAX automatically adjusts mismatched data types, which can lead to unexpected results. Explicit casting eliminates this uncertainty by allowing you to specify the desired data type.

For instance, you can use the CONVERT function to change a column’s data type to match the calculation requirements. If you’re working with financial data, converting values to a currency format ensures consistent rounding and precision. Similarly, the FORMAT function can help you display numbers as text when needed.

Here’s an example of explicit casting in DAX:

Earnings = CONVERT([Revenue], CURRENCY) - CONVERT([Expenses], CURRENCY)

In this formula, both Revenue and Expenses are explicitly cast to the currency data type. This approach prevents rounding errors and ensures that the subtraction operation produces accurate results.

Note: Use explicit casting when precision is critical, such as in financial or scientific calculations. This practice minimizes errors and ensures consistent outcomes.

Optimizing Data Types for Performance

Optimizing data types improves the speed and efficiency of your DAX calculations. The wrong data type can slow down queries, especially when processing large datasets. For example, using floating-point numbers instead of integers forces the engine to perform additional conversions, which increases processing time.

Follow these best practices to optimize your data types:

1. Use ISBLANK() instead of =Blank() for null checks.

2. Replace ISBLANK() || = 0 with = 0 for better performance.

3. Use SELECTEDVALUE() instead of HASONEVALUE() or VALUES().

4. Replace repeated measures inside IF branches with variables.

5. Use DIVIDE() instead of / to handle division safely.

6. Avoid filtering on string columns whenever possible.

7. Convert columns to Boolean data types if applicable.

For example, if you’re calculating a ratio, use the DIVIDE() function instead of the division operator (/). This function handles division by zero gracefully and improves performance:

Profit Margin = DIVIDE([Profit], [Revenue], 0)

This formula calculates the profit margin while avoiding errors caused by dividing by zero.

Tip: Simplify your data model by using the most efficient data types for each column. This reduces memory usage and speeds up calculations.

Best Practices for Managing Data Types in DAX

Testing and Debugging Data Type Issues

Testing and debugging are essential steps in managing data types effectively in DAX. When your formulas produce unexpected results, debugging tools can help you identify and resolve issues. The DAX debugger, available in Tabular Editor version 3.2.0, simplifies this process. It allows you to step into your code, analyze variables, and evaluate function calls one by one. This approach makes it easier to understand complex formulas and pinpoint errors.

To ensure accuracy in your DAX models, follow these best practices:

• Thoroughly evaluate your formulas and measures to confirm they align with your data model.

• Create test cases for your calculations and compare the results with expected outcomes.

• Use tools like DAX Studio to monitor performance and debug your queries.

Here’s a step-by-step approach to debugging with the DAX debugger:

1. Open your DAX code in Tabular Editor.

2. Use the debugger to step through your code, examining each variable and function call.

3. Identify mismatched data types or logical errors in your formulas.

4. Adjust your code and re-test to ensure the issue is resolved.

By adopting these practices, you can improve the reliability of your DAX calculations and avoid errors caused by data type mismatches.

Minimizing Rounding Errors in Large Models

Rounding errors can accumulate in large datasets, especially when you perform calculations involving mixed data types. These errors may seem insignificant at the row level but can distort results when multiplied across millions of rows. To minimize rounding errors, you need to carefully choose and manage your data types.

Start by using consistent data types for all columns involved in a calculation. For example, if you’re working with financial data, store values as currency to maintain precision. Avoid mixing floating-point numbers with integers, as this forces the engine to perform conversions that introduce rounding errors.

You can also reduce rounding errors by aggregating values before performing calculations. Instead of multiplying row-level values, sum them first and then apply the calculation. This approach reduces the number of operations and minimizes the impact of rounding.

Here’s an example:

Total Sales = SUMX(Sales, Sales[Quantity] * Sales[Net Price])

In this formula, the multiplication happens at the row level, which can introduce rounding errors. To improve accuracy, you can rewrite it as:

Total Sales = SUM(Sales[Quantity]) * SUM(Sales[Net Price])

This method aggregates the values first, ensuring more precise results.

Tip: Always test your formulas with sample data to verify that rounding errors are within acceptable limits.

Ensuring Consistency in Data Type Usage

Consistency in data type usage is critical for maintaining accurate and efficient DAX models. When you use inconsistent data types, you increase the risk of errors and slow down your queries. To ensure consistency, review your data model regularly and standardize the data types of your columns.

Follow these steps to maintain consistency:

• Identify the purpose of each column and assign the appropriate data type. For example, use integers for counts and decimals for precise measurements.

• Document the data types used in your model to create a reference for future updates.

• Use explicit casting in your formulas to align data types and avoid implicit conversions.

Here’s an example of how explicit casting can improve consistency:

Adjusted Revenue = CONVERT([Revenue], CURRENCY) + CONVERT([Adjustments], CURRENCY)

In this formula, both columns are explicitly cast to the currency data type, ensuring consistent calculations.

Consistency also extends to formatting. While formatting doesn’t affect how data is stored, it influences how users interpret the results. Use clear and consistent formats for numbers, dates, and text to enhance readability and reduce confusion.

By prioritizing consistency, you can create DAX models that are easier to maintain and less prone to errors.

Practical Examples of Data Type Management

Example 1: Handling Mixed Data Types in Multiplications

When you multiply columns with different data types in DAX, the engine performs implicit conversions to align them. This process can impact both performance and accuracy. For instance, multiplying a floating-point exchange rate (DOUBLE) by a currency value (CURRENCY) requires the formula engine to handle the operation. This slows down the query and introduces rounding errors.

To avoid these issues, ensure that all operands in your formula share the same data type. If you’re working with financial data, convert the exchange rate to a currency format before performing the multiplication. Here’s an example:

Original Amount = SUMX(Sales, CONVERT(Sales[Exchange Rate], CURRENCY) * Sales[Net Price] * Sales[Quantity])

This approach minimizes conversions and keeps calculations efficient. Always review your data model to confirm that columns involved in multiplications are compatible.

Example 2: Avoiding Rounding Errors in Currency Calculations

Rounding errors can distort results, especially in financial models. These errors often occur when you mix data types like CURRENCY and DOUBLE. The table below illustrates how different combinations of data types affect the results of basic operations:

To reduce rounding errors, use consistent data types like CURRENCY for all financial calculations. Aggregate values before performing operations to further improve accuracy. For example:

Total Sales = SUM(Sales[Quantity]) * SUM(Sales[Net Price])

This method ensures precise results by reducing the number of row-level calculations.

Example 3: Combining Text and Numeric Data in DAX Formulas

Combining text and numeric data in DAX formulas requires careful handling to avoid errors. Follow these best practices:

• Use parentheses to control the order of calculations.

• Ensure operands share the same data type to prevent mismatches.

• Understand how DAX handles data types differently from Excel.

For example, if you want to create a label that combines a product name with its sales figure, use the FORMAT function to convert the numeric value to text:

Product Label = Sales[Product Name] & " - Sales: " & FORMAT(Sales[Total Sales], "Currency")

This formula ensures that the numeric value displays correctly alongside the text. Always test your formulas to confirm they produce the desired output.

---

Understanding and managing data types in DAX is essential for achieving precision and optimizing performance. Choosing the right data type ensures accurate calculations and prevents errors caused by implicit conversions. It also improves query speed, especially when working with large datasets.

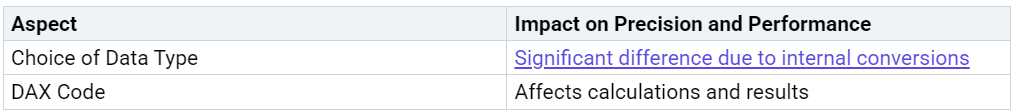

Here’s how data type management impacts your results:

To succeed, always align data types with your calculation needs. Test your formulas thoroughly to ensure consistent outcomes. By applying these best practices, you can create efficient and reliable DAX models.

FAQ

What happens if you mix data types in a DAX formula?

DAX automatically performs implicit conversions to align the data types. However, this can slow down calculations and introduce rounding errors. To avoid these issues, ensure all columns in your formula share the same data type.

How can you check the data type of a column in Power BI?

You can check the data type by selecting the column in the Fields pane. The data type appears in the ribbon under the "Column tools" tab. Always verify this before writing your DAX formulas.

Why is explicit casting important in DAX?

Explicit casting gives you control over how data types are handled. It prevents unexpected results caused by implicit conversions. Use functions like CONVERT or FORMAT to specify the desired data type for precise calculations.

How do you minimize rounding errors in large datasets?

Aggregate values before performing calculations. For example, sum quantities and prices separately, then multiply the totals. This reduces the number of row-level operations and ensures more accurate results.

Can you combine text and numeric data in a DAX formula?

Yes, you can combine them using the FORMAT function. For example:

Label = Sales[Product Name] & " - Sales: " & FORMAT(Sales[Total Sales], "Currency")

This converts numeric data to text, ensuring compatibility in the formula.
